LLMNR/NBT-NS Poisoning and SMB Relay

Environment Setup
#

Scope: 192.168.50.0/24

1. Domain Controller (DC)
#

Role: Active Directory Domain Controller
Domain: victim.org
IP Address: 192.168.50.100

2. MACHINEA
#

Domain Membership: victim.org
IP Address: 192.168.50.3
Users:
- SyJoon → Local Administrator
- VICTIM\machinea → Standard Domain User
Notes: Default Windows security features/policies intact (no modifications).

3. VICTIM1
#

Domain Membership: victim.org
IP Address: 192.168.50.4
Users:
- victim1 → Local Administrator
- VICTIM\machinea → Local Administrator, member of group Remote Management Users
Configuration:
- Inbound & outbound File and Printer Sharing (SMB) enabled
- Windows Remote Management (HTTP-In) enabled
- Default Windows security features/policies intact (no modifications).

4. ATTACKER (Kali Machine)
#

IP Address: 192.168.50.2

Scenario
#

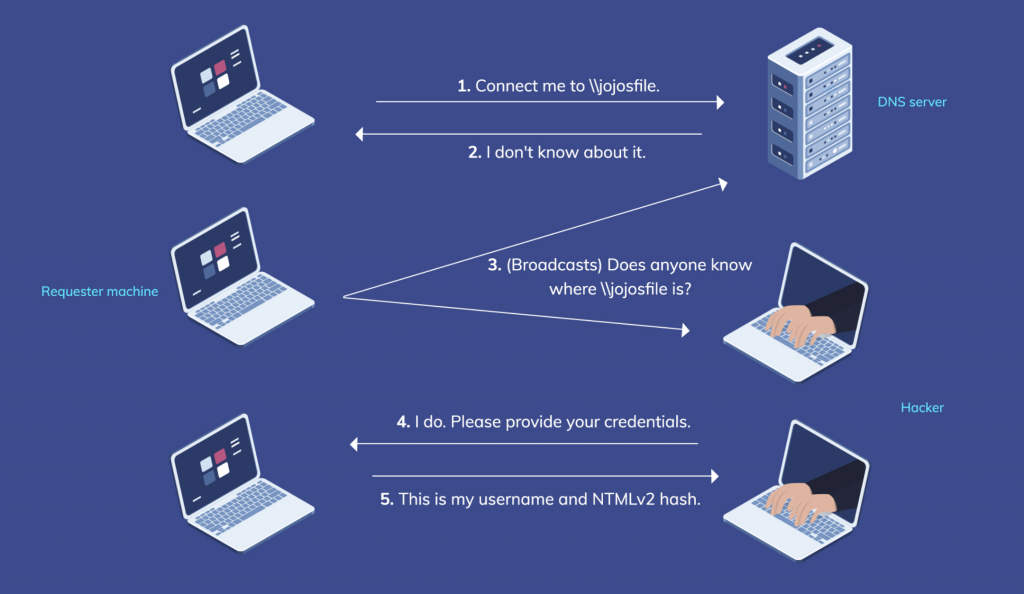

A domain user VICTIM\machinea on MACHINEA mistypes a hostname or is tricked into accessing a non-existent network resource (e.g., \\fakehost\share).
The attacker poisons LLMNR and NBT-NS, causing MACHINEA to authenticate to the attacker-controlled host.
This results in the capture of the user’s NTLMv2 hash.

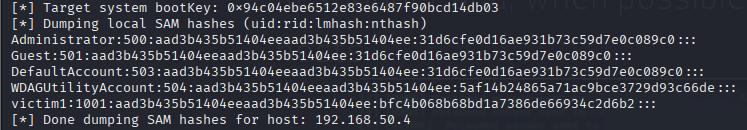

The attacker then relays the captured credentials to VICTIM1 (via SMB relay), gaining access and dumping the SAM database.
With the dumped hashes, the attacker can perform offline password cracking or use Pass-the-Hash (PtH) to authenticate directly to VICTIM1.

Exploit chain
#

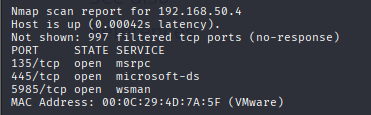

Reconnaissance & Discovery
#

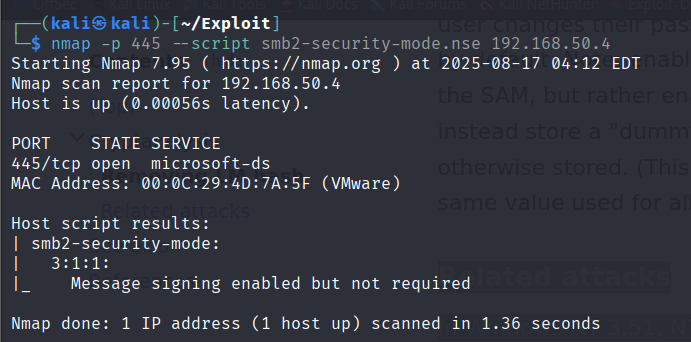

Requirements: SMB signing disabled or have SMB signing enabled but not required

vulnerable

Initial Access
#

A user may accidentally mistype a hostname while trying to access a network resource.
Alternatively, an attacker can stage a scenario — for example, impersonating a boss or department head and sending an email instructing an employee to connect to a shared resource “for review before the next meeting.”

Both cases cause the victim system to attempt name resolution, opening the door for LLMNR/NBT-NS poisoning.

Credential Access
#

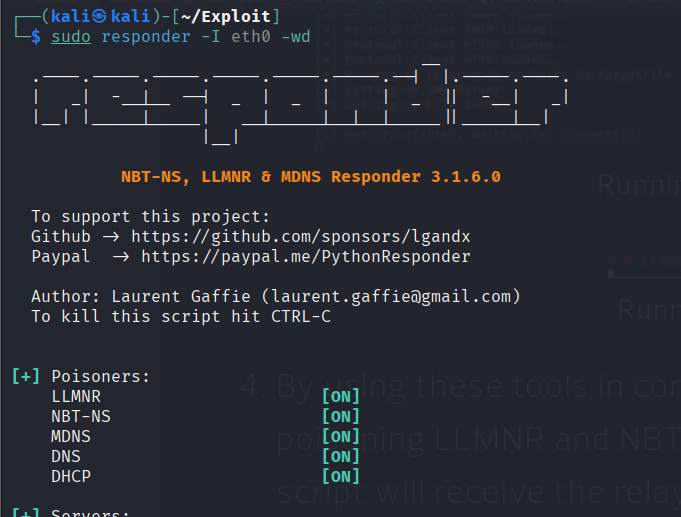

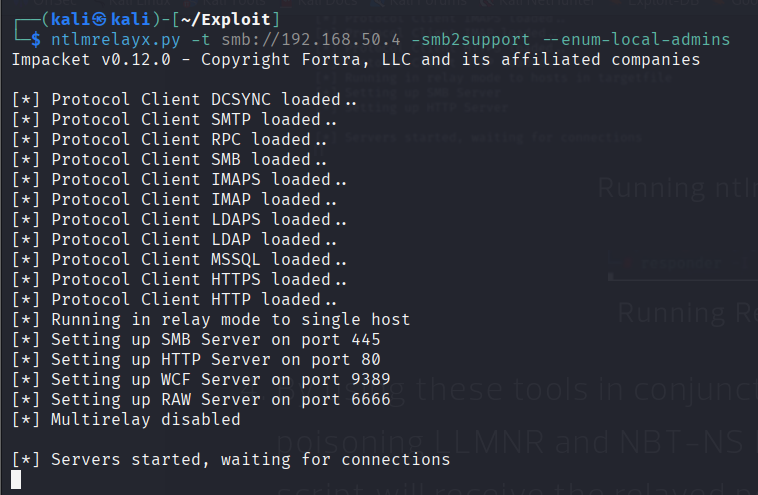

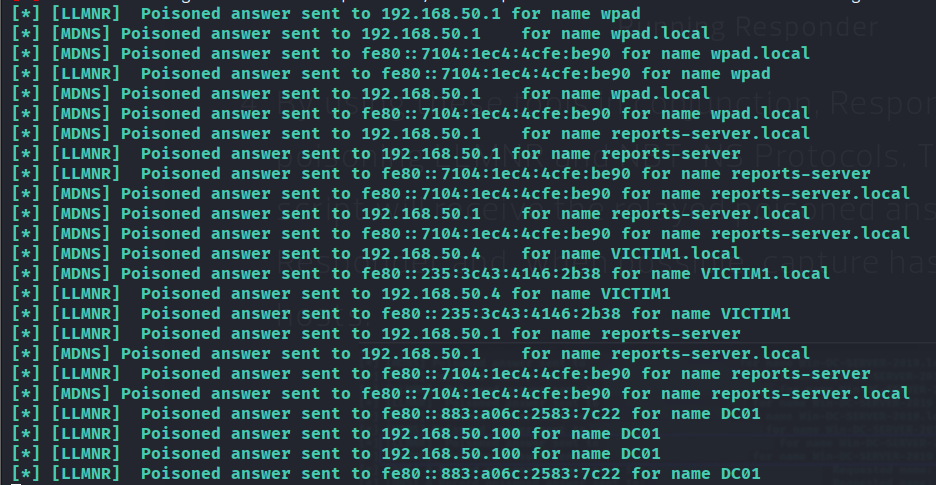

Attacker set up
#

MACHINEA
#

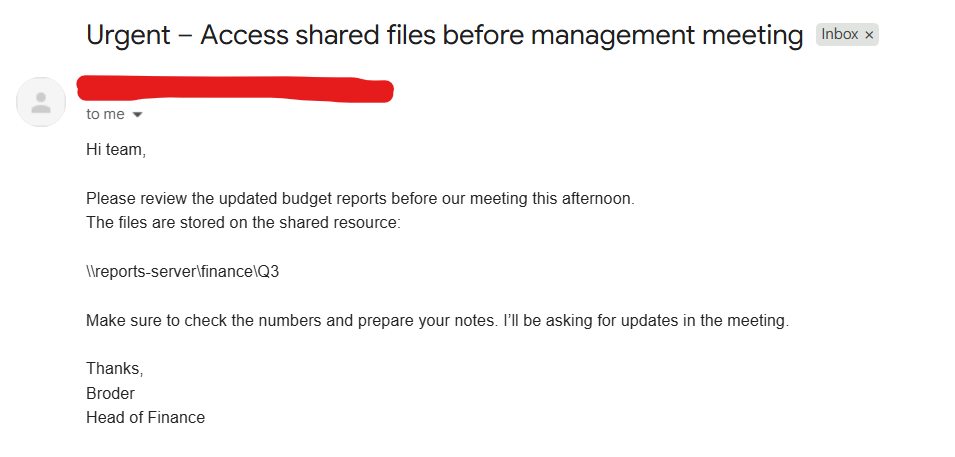

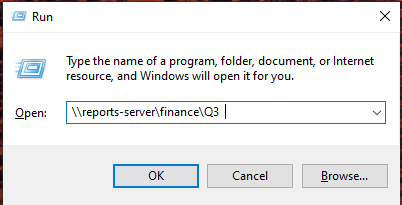

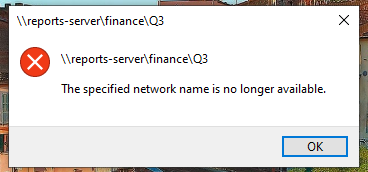

VICTIM\machinea read phising mail / mistype a hostname

Obtaining User Hashes
#

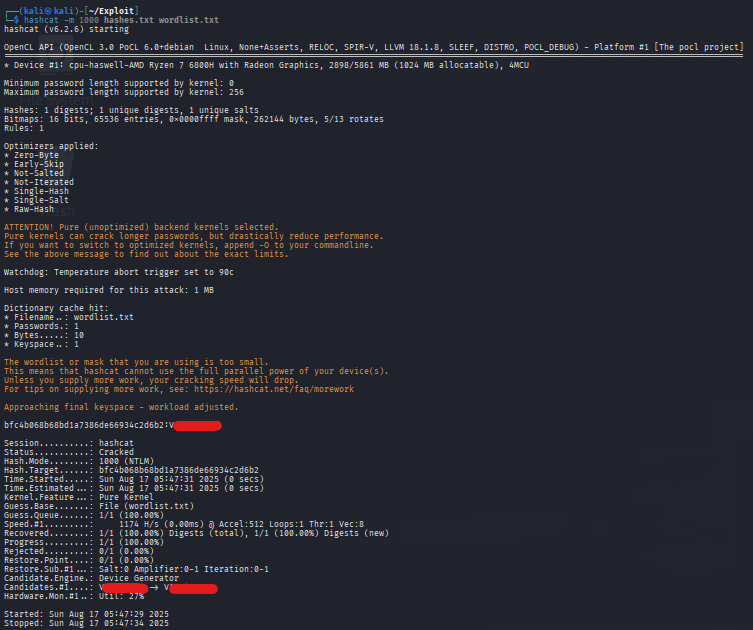

If the captured hash corresponds to a weak password that exists in my wordlist, I can recover the plaintext password using tools such as Hashcat.

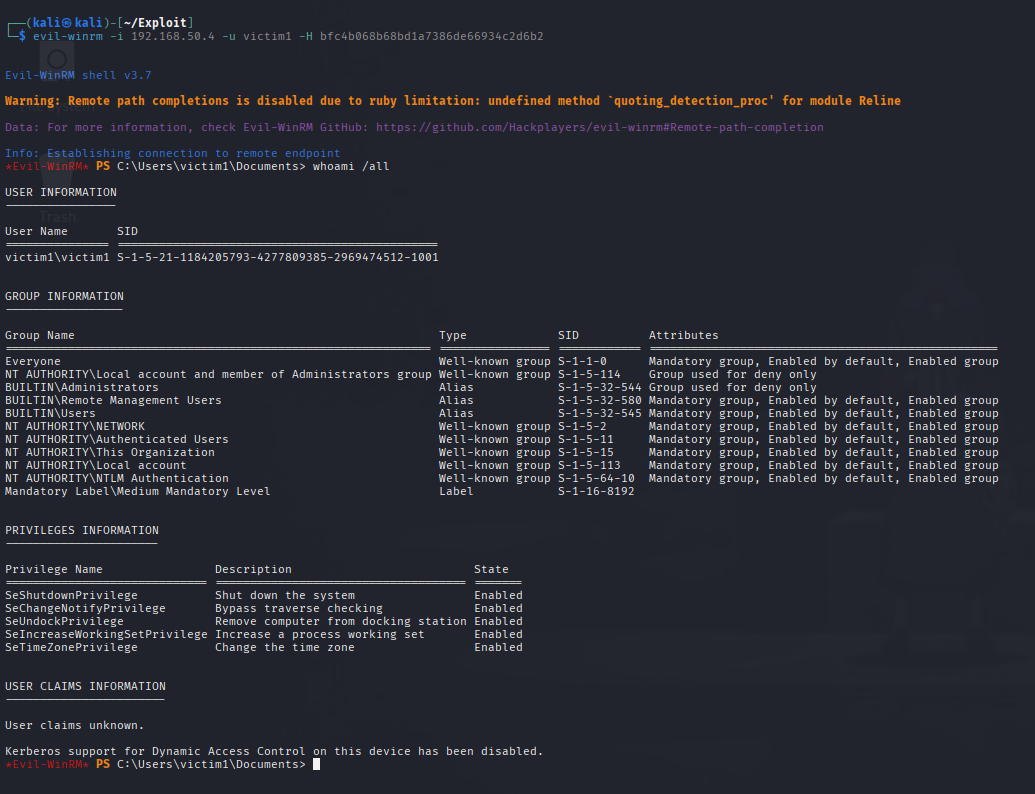

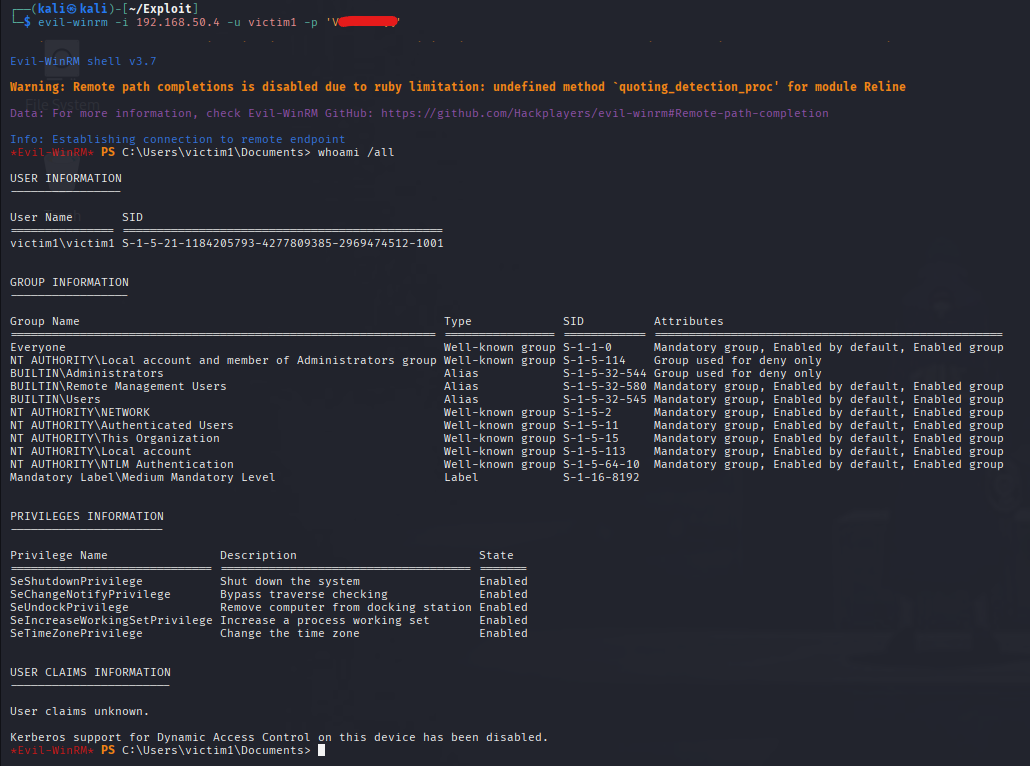

password pth

Attack Rating
#

Technique: Easy / Not sophisticated
Requirements:
- LLMNR and NBT-NS enabled on the target machine
- SMB accessible
- WinRM enabled (if planning remote login)
- Target user triggers a connection (e.g., mistyped hostname or network resource)
- Target user has Administrator privileges (for post-exploitation activities)
Context:
- Attack is feasible and can succeed reliably
- Can be performed stealthily without triggering antivirus alerts, though advanced system monitoring or intrusion detection may still detect the activity.
Real World:
- This scenario is likely to occur in real environments.

Beyond the Basics: Exploring Uncommon NTLM Relay Attack Techniques introduces additional NTLM relay attack methods and variations beyond the standard scenarios.
